Driving Type

Left / Right Hand Driving

Cabin

1880 Cabin ( Berth can be optional)

2080 Cabin ( Berth can be optional)

Engine

Power

102HP/120HP

140HP/160HP

Emission

Diesel EURO II, IV, V

Transmission

MANUAL,6F

Steering

Hydraulic steering with power assistance

Axle

Design and produce by SINOTRUK

Front/ Rear Axle

2.0+3.5

3.2+8.2

Wheelbase

3360

4700

Fuel tanker capacity

120L

Tyres

7.00R16

8.25R20/9.00R20

Working hight

10m、14m

18m、22m

Working cage size

1200*600*1000mm

Rated load of platform

200KG

Slewing angel

360°

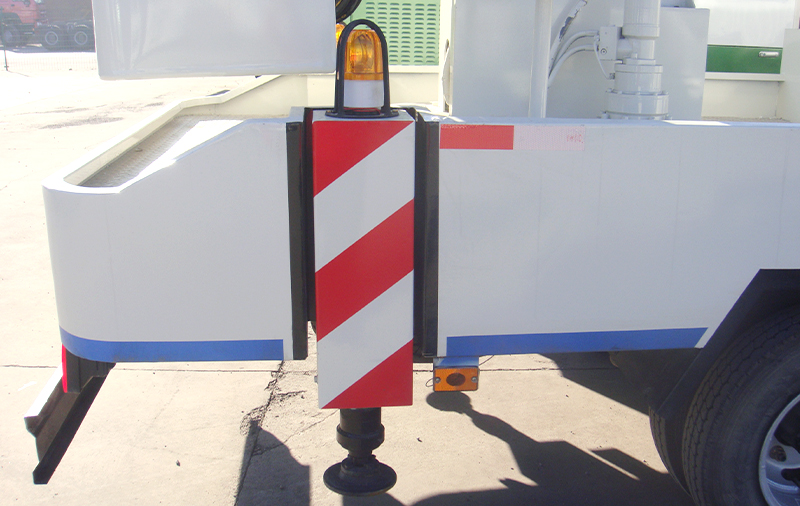

Leg type and number

H type, four (adjustable)

Max lifting capacity

1000kg

Operating type

Electro-hydraulic type

Working arm

Three/two arm hydraulic cylinder
