Driving Type

Left / Right Hand Driving

Cabin

2080 Cabin ( Berth can be optional)

Engine

Power

120HP

Emission

Diesel EURO II, IV, V

Transmission

MANUAL 6F

Steering

hydraulic steering with power assistance

Axle

Design and produce by SINOTRUK

Front/ Rear Axle

2.0+4.2

Wheelbase

4200

Oil tank

120L

Tyres

8.25R16

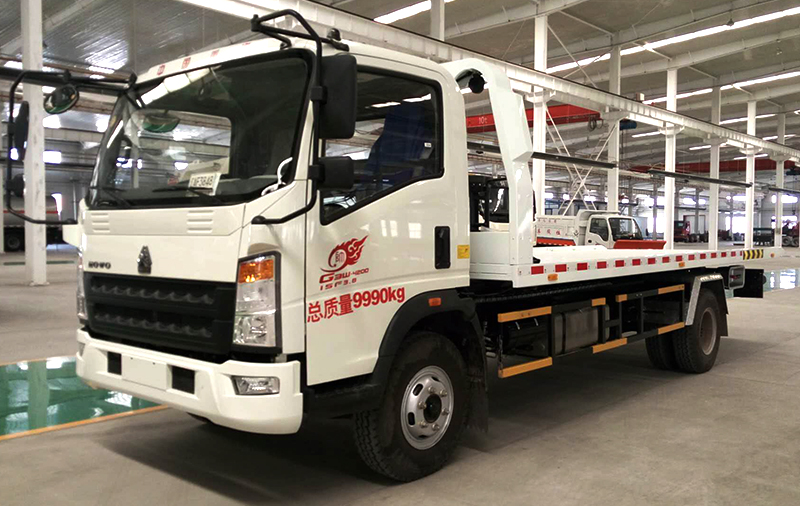

Deck

Rated holding capacity (kg)

9990

Maximum lifting weight (kg)

2500

Fully extended maximum lift capability (kg)

1500

Effective length of the bracket arm

1650(mm)

Retracting stroke of the bracket arm

1350(mm)

Upper inclination of the bracket arm

11(°)

Lower inclination of the bracket arm

-8(°)

Minimum inclination when the plate is extended backwards (°)

8

Maximum load-carrying capacity of the plate mechanism (kg)

4000

Dimensions of the plate mechanism (mm)

6400×2500×56

Height  of compartment floor above ground (mm)

1158

Retracting stroke of plate (mm)

3000

Maximum tension of winch (kg)

4000

Maximum tension of winch (kg)

10

Length of steel wire rope (mm)

20

Minimum linear speed of steel wire rope (m/min)

4
